Briton Fire Door Push Bar, For Use With 378M

  • RS Stock No. 420-7693
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 378.R.SE
  • ผู้ผลิต / Manufacturer Briton
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

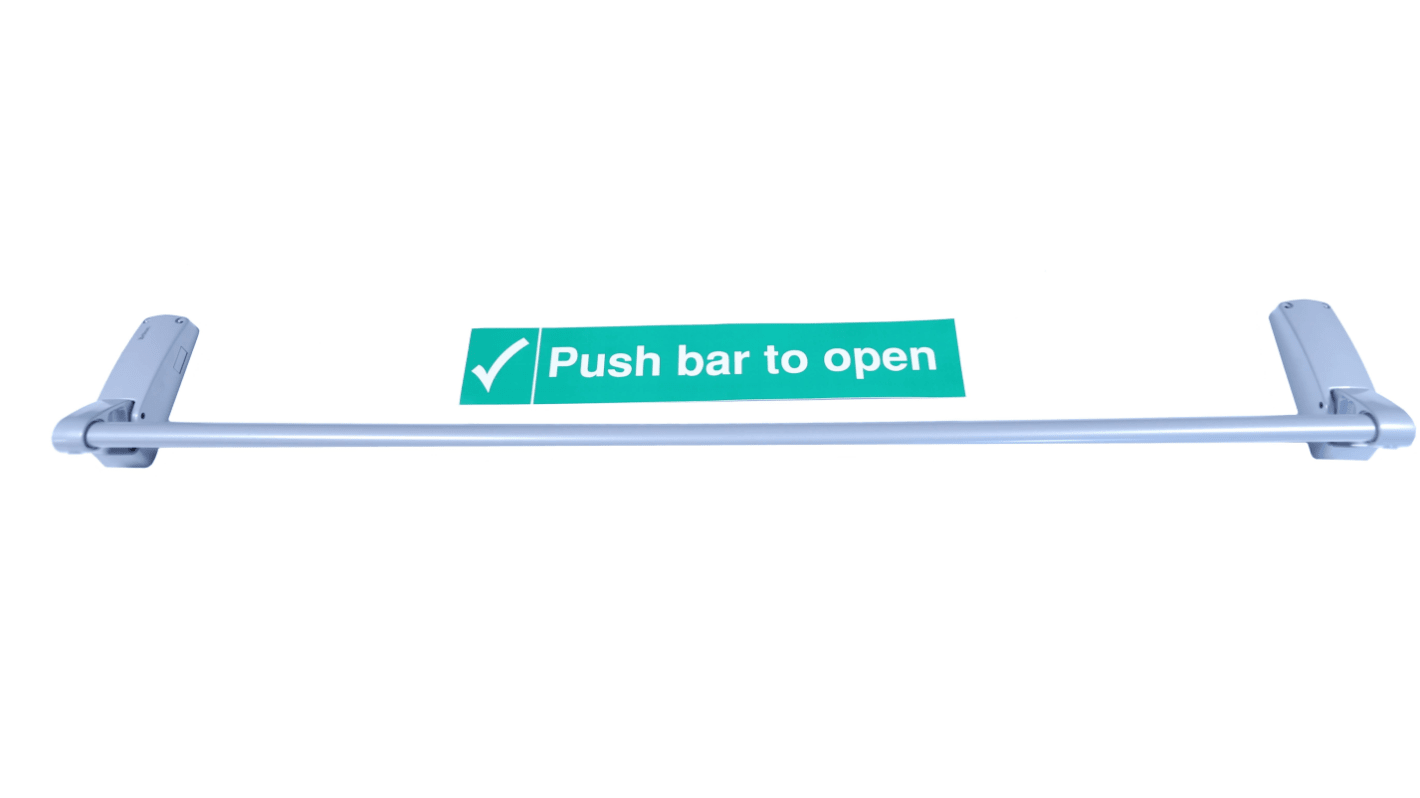

Briton 378 Panic Latch

For use on single doors and the first leaf of double doors with rebated meeting stiles
Suitable for doors up to 1300mm wide
Supllied in left or right hand, but can be reversed on site
Can be used with rim cylinder fitted to outside of the door
The bar can be cut down to required size

Note

There is NO door strike included

Standards

Included in successful fire test to EN 1634 on 54/55mm timber door for 30 minutes (EN classification 37611322A)

Approvals

EN 1125

//media.rs-online.com/t_line/L420769-01.gif

Standards

EN 1125; EN 1634

คุณสมบัติ / Specifications
คุณสมบัติ Value
Type Panic Push Bar
Fire Door Suitable Yes
Suitable Door Types Metal
Compatible With 378M
Door Thickness Maximum 1300mm
35 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 4,999.15
(exc. VAT)
THB 5,349.09
(inc. VAT)
Units
Per unit
1 +
THB4,999.15
