RS PRO Door and Window Switch 500 (dc)mA, 50V dc

  • RS Stock No. 122-0716
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

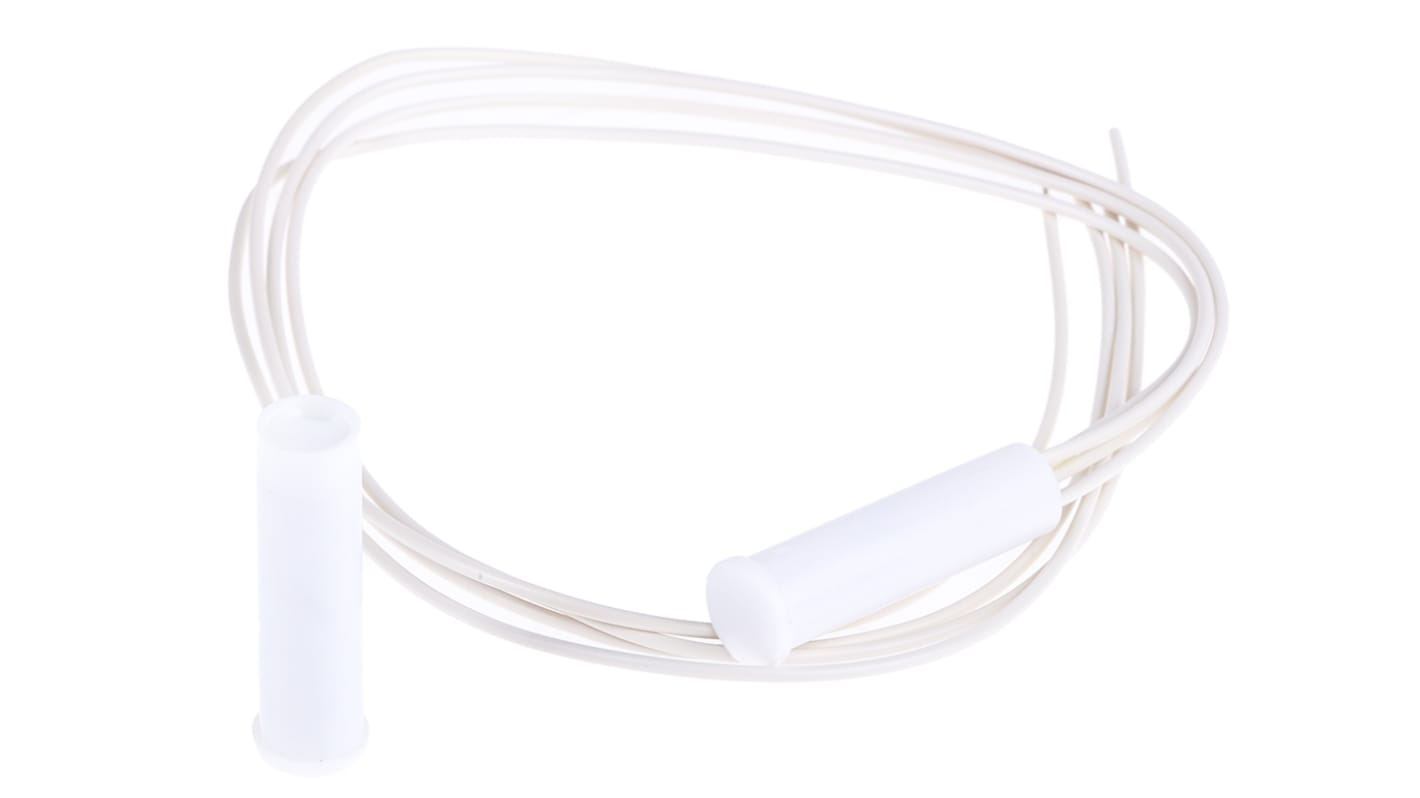

RS Pro Flush Mount Proximity Switch and Magnet Set

Cable type or terminal type flush mount switches. Cable type comes fitted with 300mm long cable. Proximity switches primarily designed for discreet protection of doors and windows. The switches are of moulded construction incorporating a N/O SPST magnetically operated reed switch. The permanent actuating magnet is also of moulded construction to facilitate easy fixing. All switches have a separate tamper loop or terminals for maximum security as described in BS 4737.

Normally open with supervisory loop
Operating distance 15mm
Maximum switching voltage 50 V/DC
Maximum switching current 0.5 Amps DC (Resistive)
Maximum power 10 W/VA
Contact resistance 1 Ohm (typical)

Note

These are not supplied with fixing screws - Can be used with 3/4" Length Screw 529-062

Standards

BS 4737 Part 3

คุณสมบัติ / Specifications
คุณสมบัติ Value
Activation Type Proximity Switch
Switch Configuration Normally Open
Switching Current 500 (dc)mA
Switching Voltage 50V dc
Operating Gap 15mm
Colour White
Height 30 mm
Width 9 (Dia.)mm
9 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 107.73
(exc. VAT)
THB 115.27
(inc. VAT)
Units
Per unit
1 +
THB107.73
