- RS Stock No.:
- 136-9246
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MOTG-RS485
- ผู้ผลิต / Manufacturer:
- 4D Systems
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB768.53
(exc. VAT)
THB822.33
(inc. VAT)
Units | Per unit |
1 - 4 | THB768.53 |
5 - 9 | THB758.53 |
10 + | THB748.80 |
- RS Stock No.:
- 136-9246
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MOTG-RS485
- ผู้ผลิต / Manufacturer:
- 4D Systems
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- AU
รายละเอียดสินค้า / Product Details

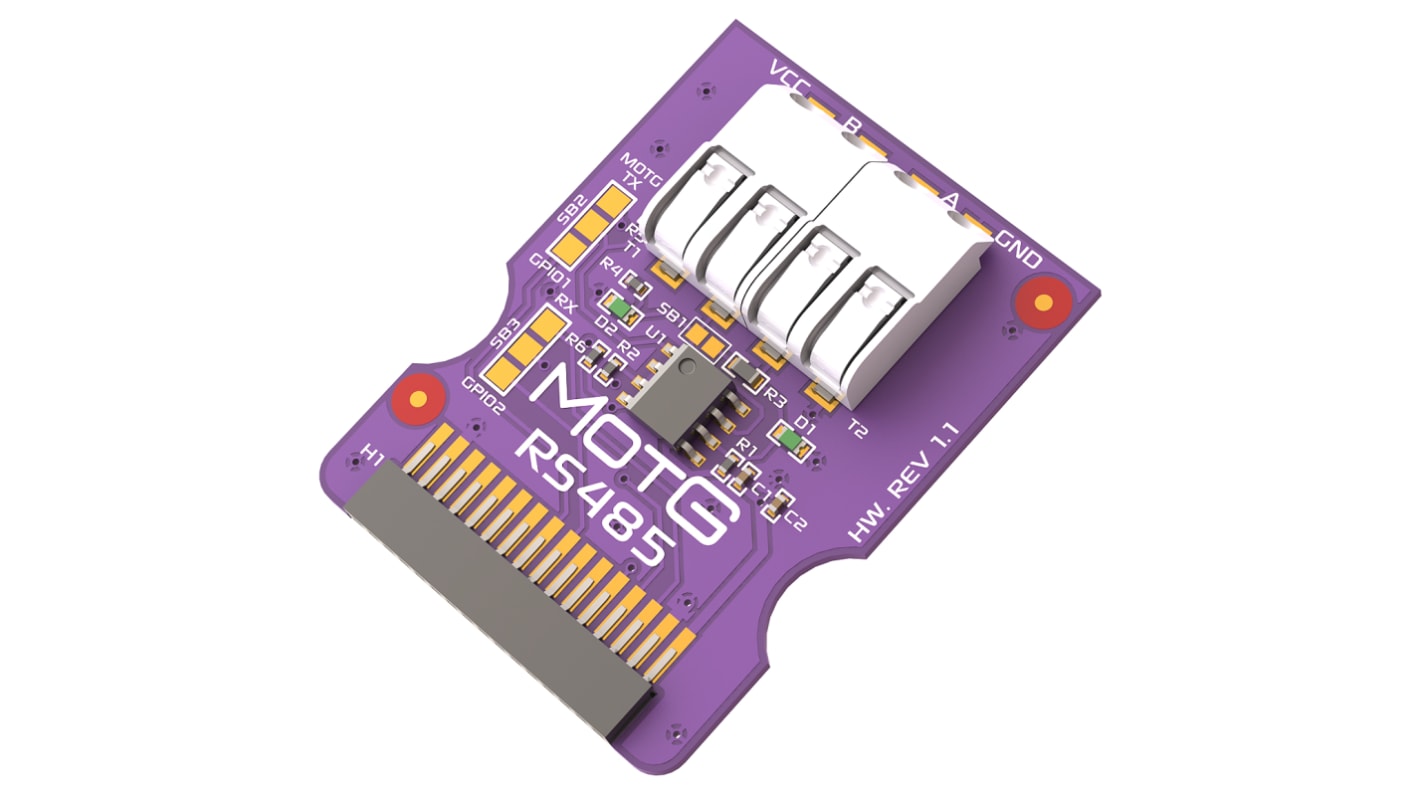

MOTG RS-485 Add-On Module
The 4D Systems MOTG (Modules on the Go) product family provides an innovative plug and play solution for adding key functionalities to 4D Systems gen4 LCD Display Modules.
Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.
This MOTG RS-485 Add-On Module adds RS-485 communication, allowing a gen4 LCD Module to interface with RS-485 devices. The module offers a 12 Mbps data rate and features selectable Tx and Rx pins.
The module utilises the STMicroelectronics ST1480ACDR Transceiver to provide the RS-485 capability.
Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.
This MOTG RS-485 Add-On Module adds RS-485 communication, allowing a gen4 LCD Module to interface with RS-485 devices. The module offers a 12 Mbps data rate and features selectable Tx and Rx pins.
The module utilises the STMicroelectronics ST1480ACDR Transceiver to provide the RS-485 capability.
Features
Adds RS-485 communication to gen4 LCD Display Modules
Features the STMicroelectronics ST1480ACDR RS-485 Transceiver
Up to 12 Mbps data rate
7 to 12 common model input voltage range
Supports 2-wire 3.3 V / 5 V TTL UART interface
ESD protection: ±15 kV human body model
3.3 V supply
Universal MOTG Interface (UMI) for plug and play functionality
Fits MOTG AC1, AC2 and AC3 Interface Boards
Compact – Fitment maintains slim module profile
Features the STMicroelectronics ST1480ACDR RS-485 Transceiver
Up to 12 Mbps data rate
7 to 12 common model input voltage range
Supports 2-wire 3.3 V / 5 V TTL UART interface
ESD protection: ±15 kV human body model
3.3 V supply
Universal MOTG Interface (UMI) for plug and play functionality
Fits MOTG AC1, AC2 and AC3 Interface Boards
Compact – Fitment maintains slim module profile
Kit Contents
1 x MOTG RS-485 Add-On Module
4D Systems Display Accessories
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
For Use With | gen4 LCD Display Modules |
Interface Type | RS485, UART |
Kit Contents | MOTG RS-485 Add-On Module |
Series | MOTG |
Kit Name | MOTG RS-485 Add-On Module for gen4 LCD Displays |
