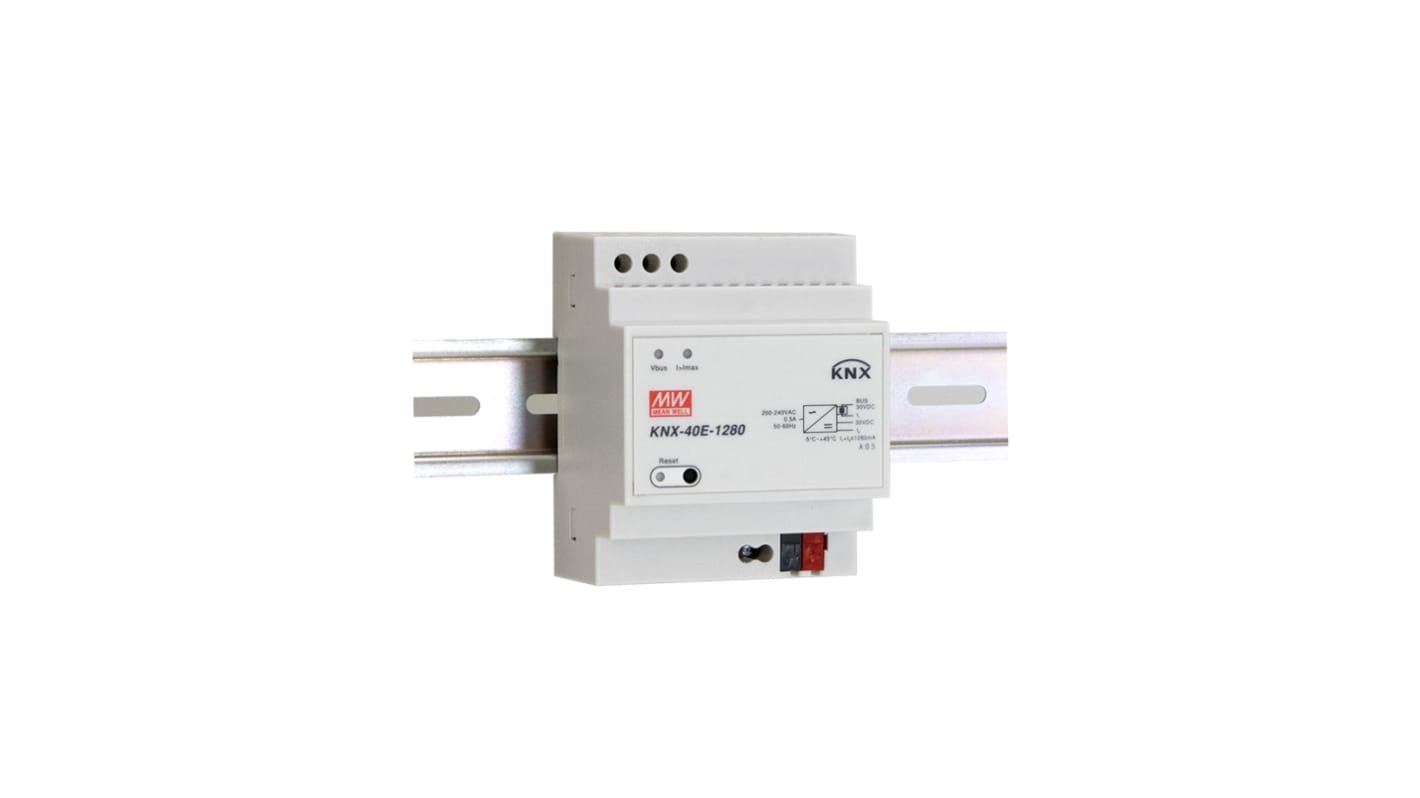

MEAN WELL KNX-40E Switch Mode DIN Rail Power Supply, 180 → 264V ac ac, dc Input, 30V dc dc Output, 1.28A Output,
- RS Stock No.:
- 183-4140
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KNX-40E-1280D
- ผู้ผลิต / Manufacturer:
- MEAN WELL
- RS Stock No.:
- 183-4140
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KNX-40E-1280D
- ผู้ผลิต / Manufacturer:
- MEAN WELL
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
EIB/KNX Power Supply with Integrated Choke
Compact Size with 4SU Width
Suitable Extra Low Voltage(SELV)
180-264 VAC input
Protections: Short Circuit/ overload (Short-Circuit-Proof)/ Over Voltage
Cooling by free air convection
Isolation Class I
LED Indicator for Normal Operation, bus reset and bus overload
Installed on DIN rail TS-35/7.5 or 15
Over Voltage Category III
100% Full Load Burn-in Test
Applications
Intelligent Home Control
Modern Building Automation
Lighting Control
HVAC System
Security System
Blinds and Shutters
Monitoring Systems
Energy Management
Alarm Monitoring
Compact Size with 4SU Width
Suitable Extra Low Voltage(SELV)
180-264 VAC input
Protections: Short Circuit/ overload (Short-Circuit-Proof)/ Over Voltage
Cooling by free air convection
Isolation Class I
LED Indicator for Normal Operation, bus reset and bus overload
Installed on DIN rail TS-35/7.5 or 15
Over Voltage Category III
100% Full Load Burn-in Test
Applications
Intelligent Home Control
Modern Building Automation
Lighting Control
HVAC System
Security System
Blinds and Shutters
Monitoring Systems
Energy Management
Alarm Monitoring
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Type | Switch Mode |
Output Voltage | 30V dc |
Output Current | 1.28A |
AC or DC Input Voltage | ac, dc |
AC or DC Output Voltage | dc |
Input Voltage | 180 → 264V ac |
Power Rating | 38.4W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 90mm |
Width | 72mm |
Depth | 57mm |
Series | KNX-40E |
Standards Met | CE Certified, DIN EN60715, EN50491-3, EN50491-5-2,-5-3, EN61000-3-2,-3-3, EN61000-4-2,3,4,5,6,8,11, EN61558-1, EN61558-2-16 |
Maximum Temperature | +70°C |
MTBF | 487.4kh |
Ripple And Noise | 100mV Pk-Pk |
Efficiency | 86% |
Minimum Temperature | -30°C |
Mounting Type | DIN Rail Mount |
Special Features | 3 Years Warranty, Compact Size with 4SU Width, Cooling by Free Air Convection, Safety Extra Low Voltage (SELV) |
