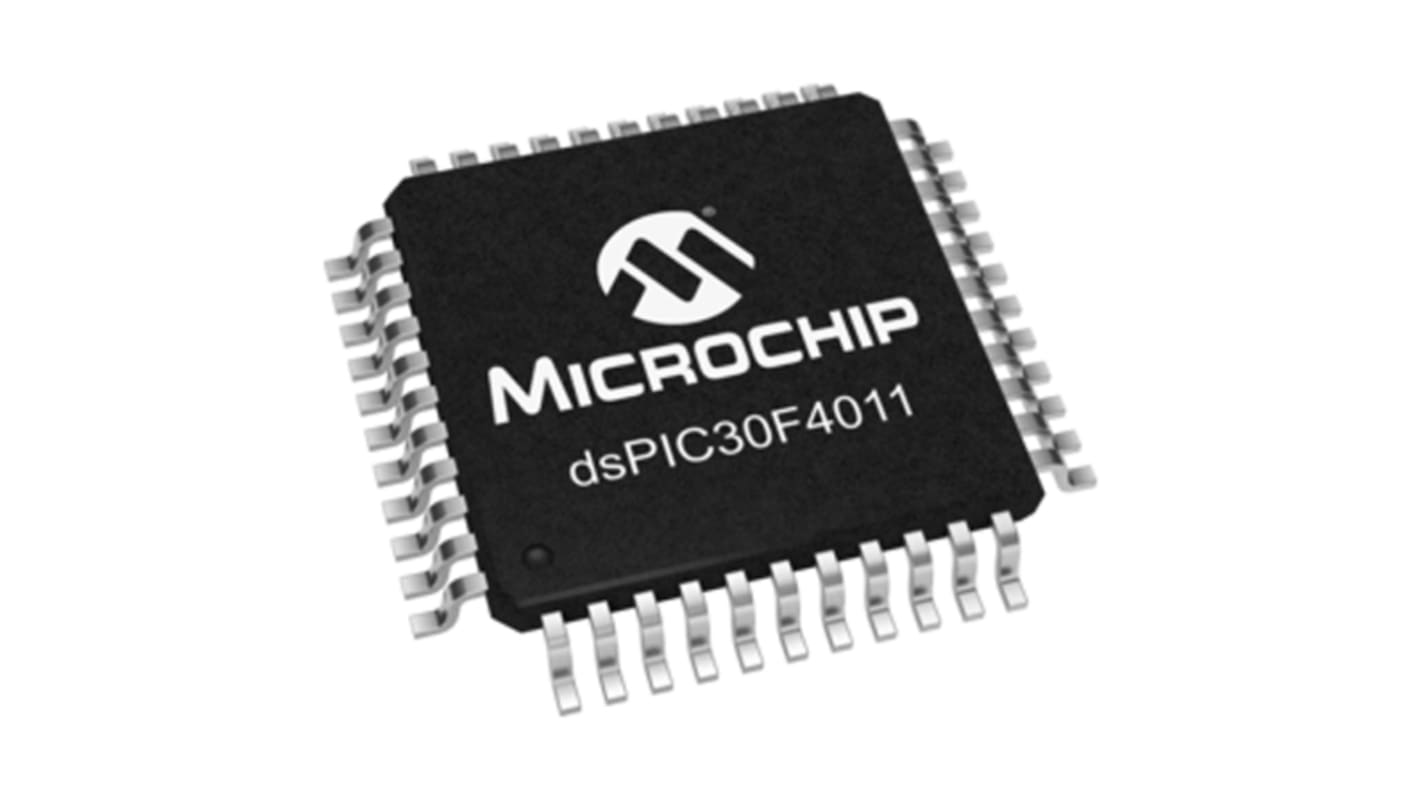

dsPIC30F4011-30I/PT Microchip dsPIC30F, 16bit Digital Signal Processor 30MIPS 1.024 kB, 48 kB Flash 44-Pin TQFP
- RS Stock No.:
- 666-8292
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- dsPIC30F4011-30I/PT
- ผู้ผลิต / Manufacturer:
- Microchip
- RS Stock No.:
- 666-8292
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- dsPIC30F4011-30I/PT
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
dsPIC30F Digital Signal Controller
The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Maximum Frequency | 30MIPS |
Series | dsPIC30F |
Device Million Instructions per Second | 30MIPS |
Data Bus Width | 16bit |
RAM Size | 2.048 kB |
Instruction Set Architecture | RISC |
Program Memory Size | 1.024 kB, 48 kB |
Program Memory Type | Flash |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 44 |
Typical Operating Supply Voltage | 2.5 → 5.5 V |
Number of UART Channels | 2 |
Number of PCI Channels | 0 |
Number of LIN Channels | 0 |
Number of USART Channels | 0 |
Timers | 5 x 16 bit |
Dimensions | 10 x 10 x 1.05mm |
Number of SPI Channels | 1 |
USB Channels | 0 |
Timer Resolution | 16bit |
Number of Timers | 5 |
Number of Ethernet Channels | 0 |
Number of PWM Units | 5 |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
ADC Channels | 9 |
Number of CAN Channels | 1 |
Number of I2C Channels | 1 |
ADC Resolution | 10bit |
Height | 1.05mm |
Pulse Width Modulation | 1(6 Channel) (Motor Control), 4(16 bit) |
Width | 10mm |
PWM Channels | 6 |
Length | 10mm |
ADCs | 9 x 10 bit |
PWM Resolution | 16bit |
Minimum Operating Temperature | -40 °C |
