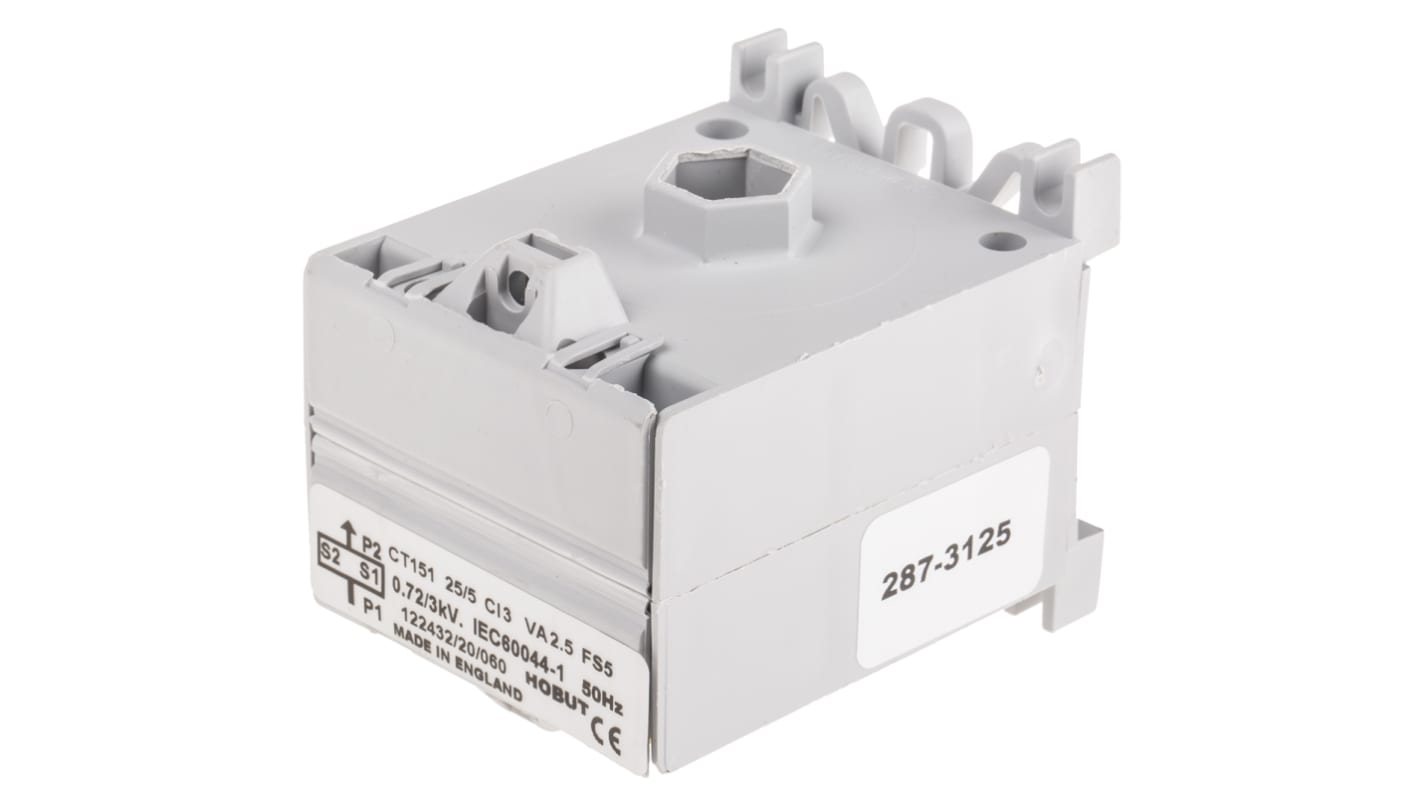

HOBUT CT151 Series Straight Through Current Transformer, 25:5, 14mm Bore
- RS Stock No.:
- 287-3125
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CT151M25/5-2.5/3
- ผู้ผลิต / Manufacturer:
- HOBUT
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
ตัวเลือก
สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ
- RS Stock No.:
- 287-3125
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CT151M25/5-2.5/3
- ผู้ผลิต / Manufacturer:
- HOBUT
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details
Multi Mounting Current Transformer - 14mm Aperture
Three built-in fixing methods: Base and DIN rail mounting
Case moulded in impact polyester with built-in hinged terminal cover
Cables up to 14mm outside diameter, or a busbar 14mm wide
Accuracy Class 1 (60 & 80A) or Class 3 (25 & 40A)
Power consumption 2.5VA, 50/60Hz
For use with 5A moving iron meters or cam-operated selector switches
Secondary winding epoxy resin insulated
BS7627/IEC185
Case moulded in impact polyester with built-in hinged terminal cover
Cables up to 14mm outside diameter, or a busbar 14mm wide
Accuracy Class 1 (60 & 80A) or Class 3 (25 & 40A)
Power consumption 2.5VA, 50/60Hz
For use with 5A moving iron meters or cam-operated selector switches
Secondary winding epoxy resin insulated
BS7627/IEC185
Current Transformers
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Current Ratio | 25:5 |
| Bore Size | 14mm |
| Series | CT151 |
| Transformer Type | Straight Through |
| Overall Height | 75mm |
| Overall Width | 54.5mm |
| Overall Depth | 68mm |
| Minimum Temperature | -20°C |
| Maximum Temperature | +70°C |
