- RS Stock No.:
- 171-8847
- ผู้ผลิต / Manufacturer:
- RS PRO
- RS Stock No.:
- 171-8847
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details

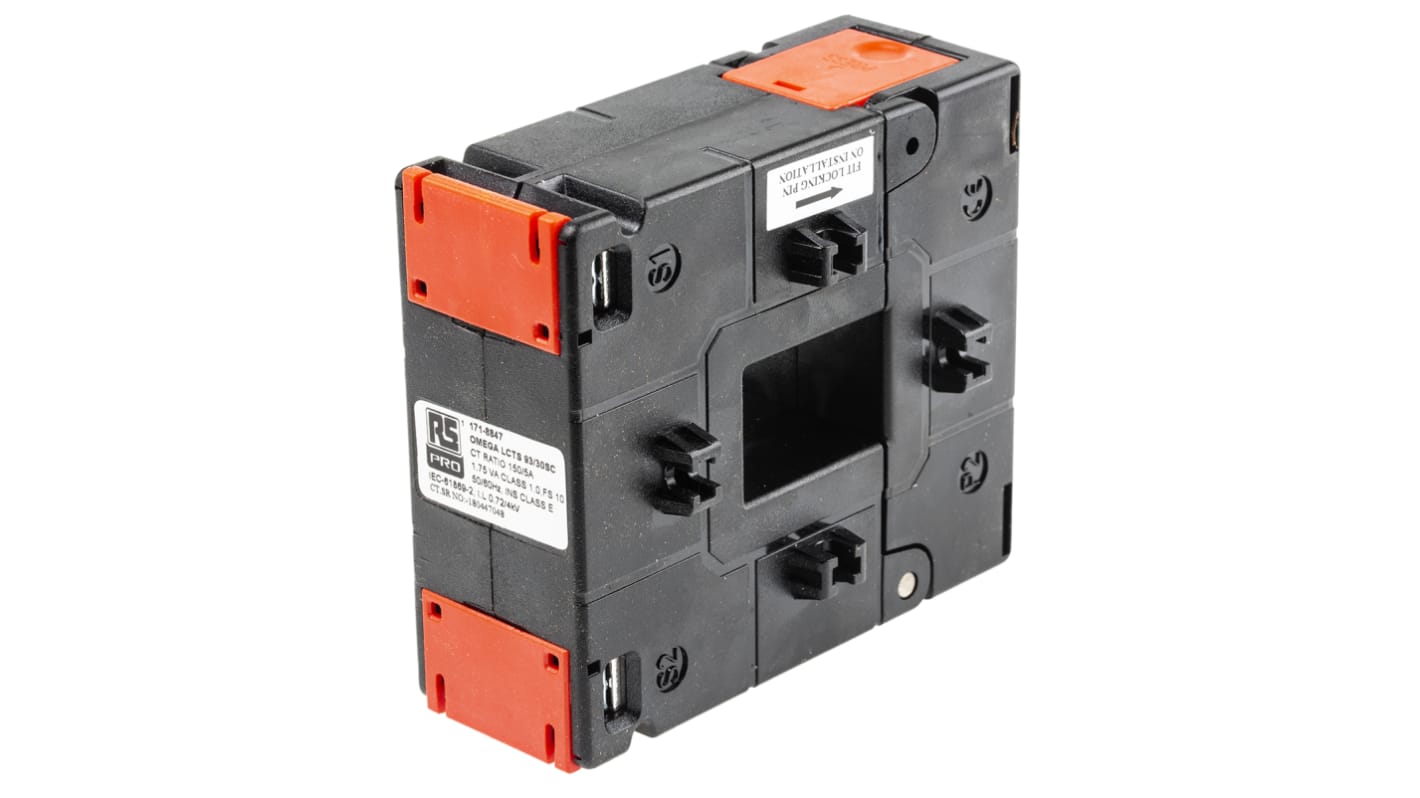

These split core transformers offer a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time.
Flame retardant grade enclosure
Test voltage 3kV 50Hz 1min.
System voltage 720V max.
Insulation class: E
Test voltage 3kV 50Hz 1min.
System voltage 720V max.
Insulation class: E
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Current Ratio | 150:5 |
Bore Size | 33 x 23mm |
Transformer Type | Base Mounted |
Input Current | 150A |
Output Current | 5 A |
Overall Height | 106mm |
Overall Width | 93mm |
Overall Depth | 40mm |
Minimum Temperature | +20°C |
Maximum Temperature | +70°C |
Mounting Type | Surface Mount |
Dimensions | 93 x 40 x 106 mm |
