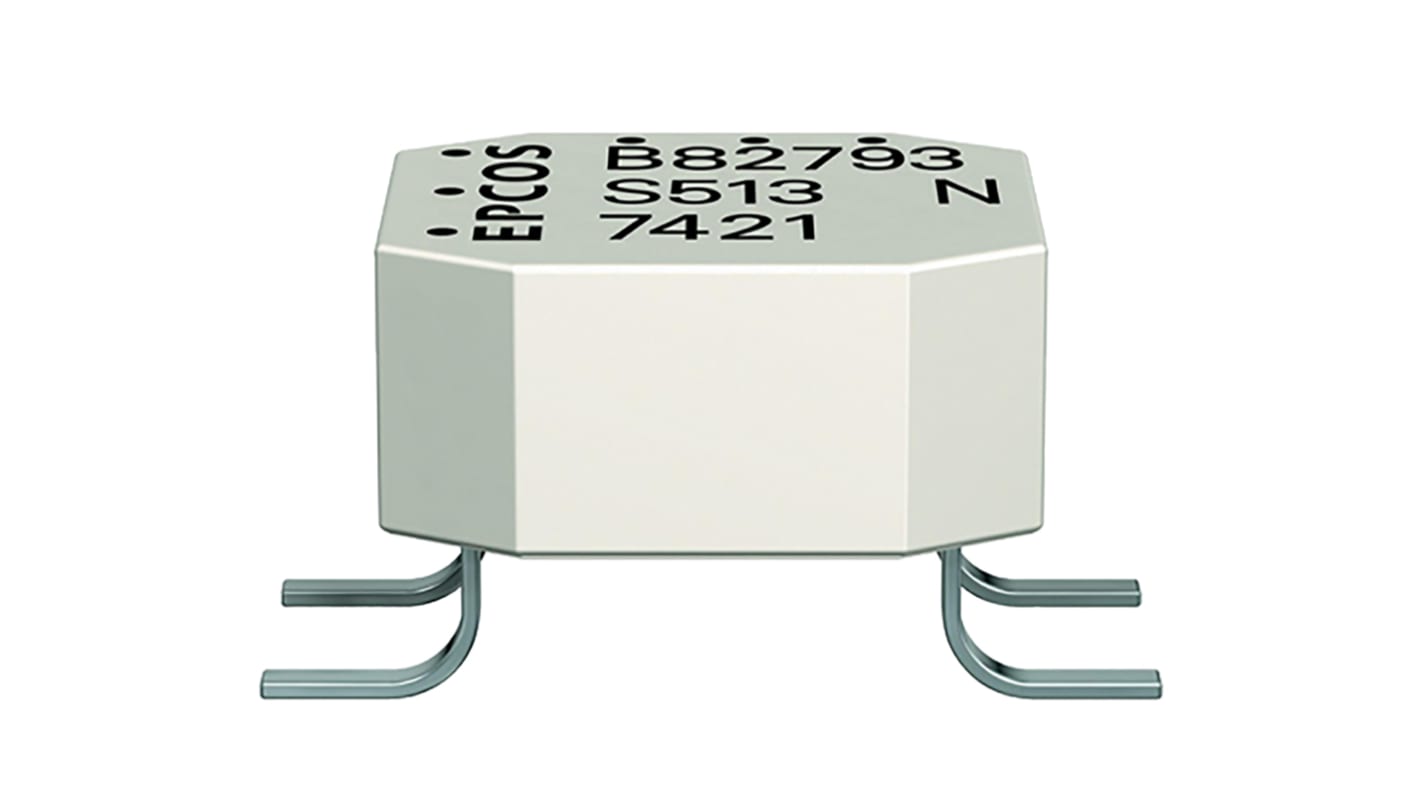

EPCOS 47 mH 100 mA Common Mode Choke 3.7Ω 42 V ac, 80 V dc
- RS Stock No.:
- 185-7607
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82793C0476N265
- ผู้ผลิต / Manufacturer:
- EPCOS
740 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (On a Tape of 5)
THB71.994
(exc. VAT)
THB77.034
(inc. VAT)
| Units | Per unit | Per Tape* |
| 5 - 370 | THB71.994 | THB359.97 |
| 375 - 745 | THB70.194 | THB350.97 |
| 750 + | THB69.114 | THB345.57 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 185-7607
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82793C0476N265
- ผู้ผลิต / Manufacturer:
- EPCOS
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
High rated currents, reduced components height
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Inductance | 47 mH |
| Series | B82793C0 |
| Impedance | 24 kΩ |
| Test Frequency | 50/60 Hz |
| DC Resistance | 3.7Ω |
| Maximum Current | 100 mA |
| Dimensions | 7.1 x 6 x 4.8mm |
| Operating Temperature Range | -40°C → +125°C |
| Number of Lines | 1 |
| Automotive Standard | AEC-Q200 |
| Mounting Type | Surface Mount |
| Voltage Rating | 42 V ac, 80 V dc |
| Termination Style | Solder Pad |
| Depth | 6mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Height | 4.8mm |
| Length | 7.1mm |
