- RS Stock No.:
- 185-7603
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82793C0225N265
- ผู้ผลิต / Manufacturer:
- EPCOS
1220 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (On a Tape of 5)
THB71.994
(exc. VAT)
THB77.034
(inc. VAT)
Units | Per unit | Per Tape* |
5 - 370 | THB71.994 | THB359.97 |
375 - 745 | THB70.194 | THB350.97 |
750 + | THB69.114 | THB345.57 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 185-7603
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82793C0225N265
- ผู้ผลิต / Manufacturer:
- EPCOS
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN

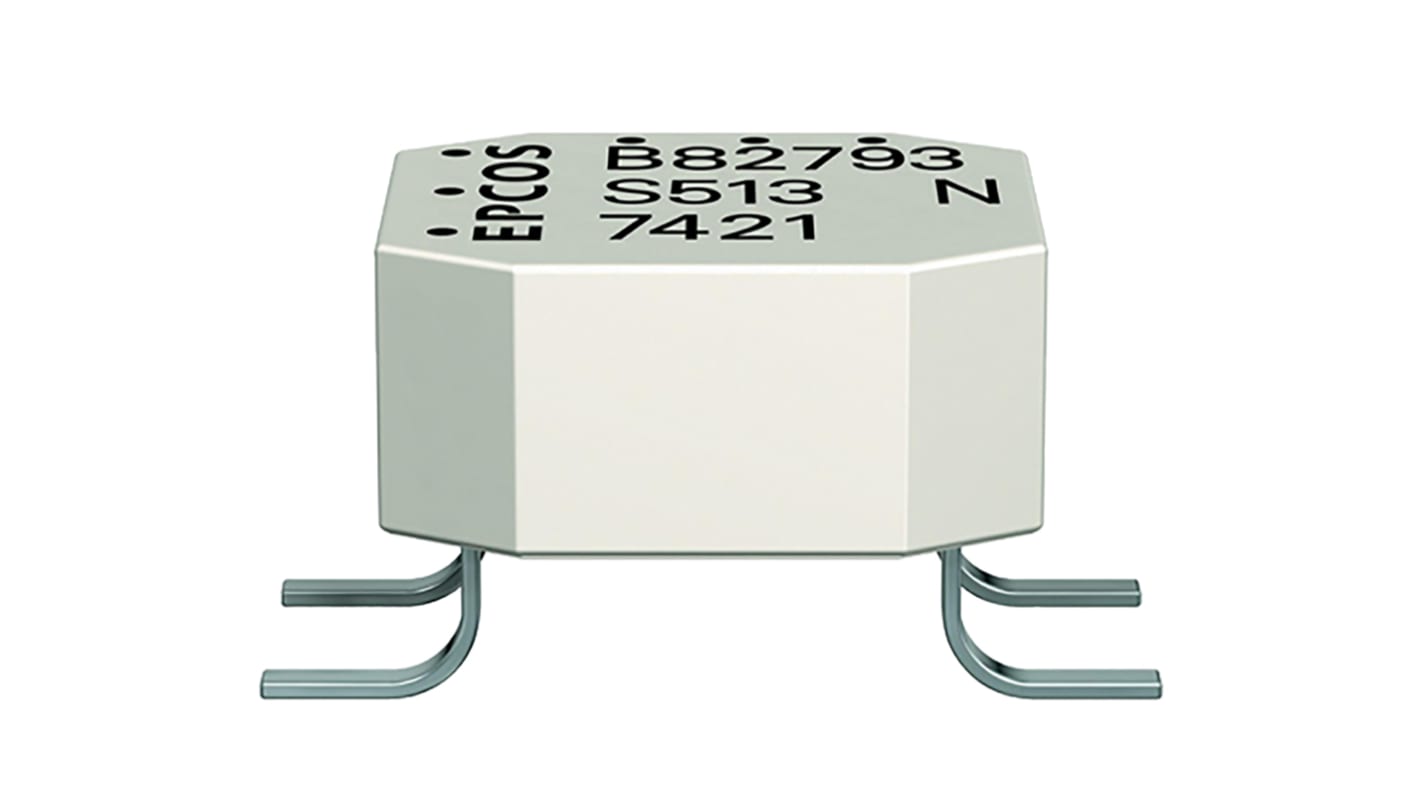

รายละเอียดสินค้า / Product Details
High rated currents, reduced components height
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Inductance | 2.2 mH |
Series | B82793C0 |
Impedance | 3.4 kΩ |
Test Frequency | 50/60 Hz |
DC Resistance | 400mΩ |
Maximum Current | 500 mA |
Dimensions | 7.1 x 6 x 4.8mm |
Operating Temperature Range | -40°C → +125°C |
Number of Lines | 1 |
Automotive Standard | AEC-Q200 |
Mounting Type | Surface Mount |
Voltage Rating | 42 V ac, 80 V dc |
Termination Style | Solder Pad |
Minimum Operating Temperature | -40°C |
Length | 7.1mm |
Maximum Operating Temperature | +125°C |
Height | 4.8mm |
Depth | 6mm |
