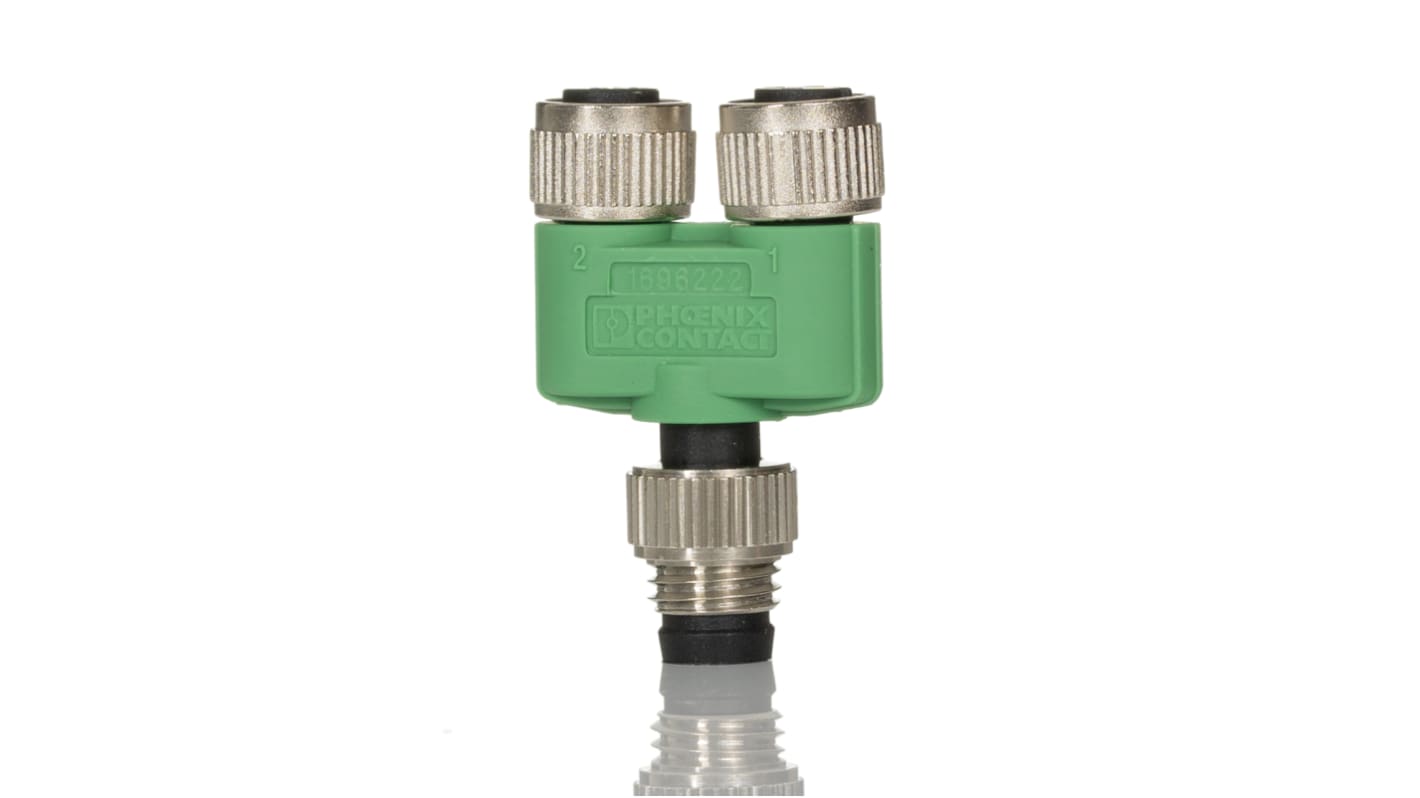

Phoenix Contact 3 Pole M8 Plug to 6 Pole M8 Socket Adapter

  • RS Stock No. 721-1392
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 1696222
  • ผู้ผลิต / Manufacturer Phoenix Contact
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

M8 and M12 distributor

The 3-pole Y distributors from Phoenix contact come in a variation of M8 & M12 outputs. They're unshielded connectors with the coding of 'A' and will allow you to connect two sensor-actuator cables and output them via 1 single M8 or M12 connection. Not only are these distributors great in the line of duty thanks to there effortless connection method (plugin) but they make great use in more permanent situations too, allowing you to use these for any applications. These devices are backed by a brilliant IP67 rating, so can again be used as a quick deployment tool or in a permanent industrial application.

Not to mention, the Y distributor is designed to be used in harsh environments so it can handle operating temperatures of -25°C up to 90°C, with a strong housing and metal zinc cast knurls.

Features and benefits:

Sensor/ actuator distributor for M8 and M12 plug-in connections

SAC-3P-M M8 Distributor - 1696222

The 1696222 model is the M8 version of the series. This model has a centre distance of 12 mm, 3 positions and has the same brilliant spec as the other models. The inputs and single output on the 1696222 are both M8, 3-positions connectors.

Phoenix Contact - PLUSCON field

คุณสมบัติ / Specifications
คุณสมบัติ Value
End 1 M8
End 1 Number of Contacts 3
End 1 Number of Ports 1
End 1 Gender Male
End 2 3 Pin Female M8 (2)
End 1 Size M8
End 2 Number of Contacts 6
End 2 Number of Ports 2
End 2 Gender Female
End 2 Size M8
Current Rating 4A
IP Rating IP65, IP67
Voltage Rating 60 V
Body Orientation Straight
Shell Plating Nickel
Contact Material Brass
Minimum Operating Temperature -25°C
Maximum Operating Temperature +90°C
Contact Plating Gold over Nickel
Length 33.7mm
77 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 806.53
(exc. VAT)
THB 862.99
(inc. VAT)
Units
Per unit
1 - 14
THB806.53
15 - 49
THB766.20
50 - 99
THB727.88
100 - 249
THB691.50
250 +
THB641.45
