Y-DISTRIBUTOR, 5-POS. STRAIGHT M12 PLUG

  • RS Stock No. 161-7247
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 1683468
  • ผู้ผลิต / Manufacturer Phoenix Contact
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

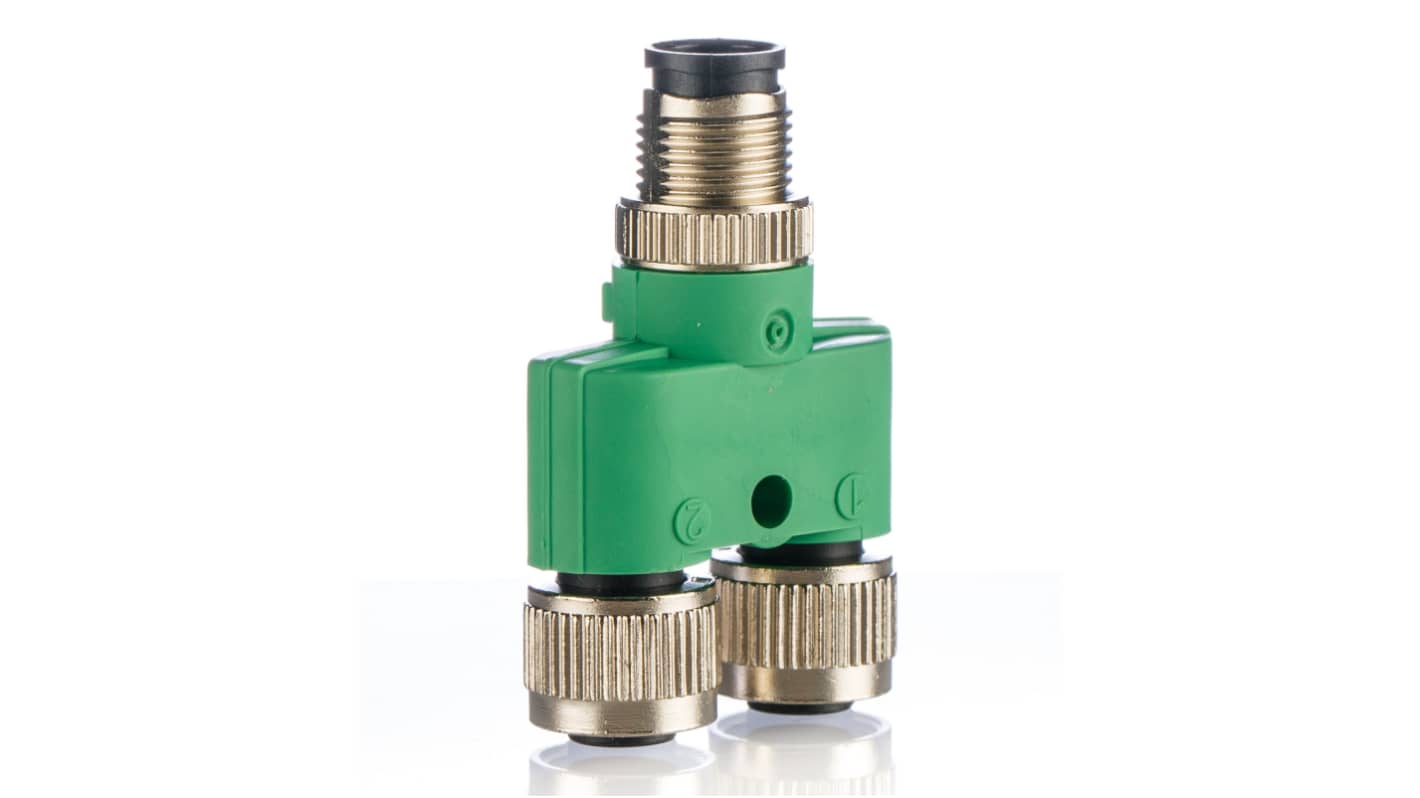

M12 Y Connector

Phoenix contact M12 Speedcon connectors, these 3 ways Y or T distribution connector are IP67 rated once mated and have a PG9 or M12 fastening thread, suitable for many applications that demand a robust multiple connections.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Current Rating 4A
IP Rating IP65, IP67
Voltage Rating 60 V
Body Orientation Straight
Maximum Operating Temperature +90°C
Contact Material CuZn
Minimum Operating Temperature -25°C
45 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Box of 5)
THB 603.132
(exc. VAT)
THB 645.351
(inc. VAT)
Units
Per unit
Per Box*
5 +
THB603.132
THB3,015.66
*ตัวบ่งบอกราคา / price indicative
