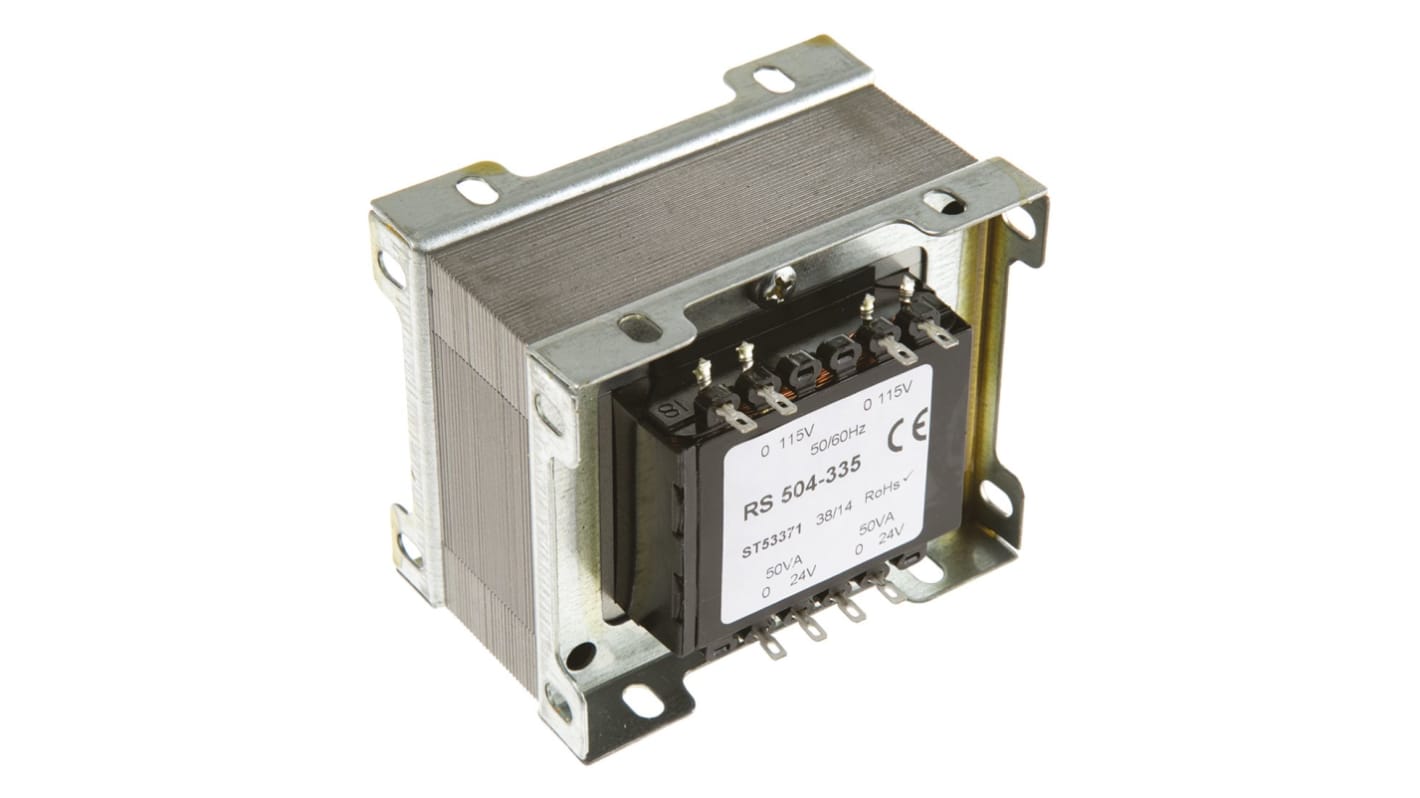

RS PRO 100VA 2 Output Chassis Mounting Transformer, 24V ac

  • RS Stock No. 504-335
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
รายละเอียดสินค้า / Product Details

Chassis Mount Clamp & Frame Construction 115/230Vac Primary Transformer

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps 6VA to 50VA
Multi-hole frame fixing 100VA
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Note

Suitable transformer shrouds: 6VA = 503-912 ; 12 & 20VA = 504-004 ; 50, 75 & 100VA = 503-928

Approvals

8888

Standards

BS3535; EN 60 742

Open Laminated Clamp & Frame 115-230Vac Primary 6VA to 100VA

Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Primary Voltage Rating 115V ac, 230V ac
Secondary Voltage Rating 24V ac
Power Rating 100VA
Number of Outputs 2
Mounting Type Chassis
Length 89mm
Width 68mm
Depth 75mm
Dimensions 89 x 68 x 75mm
Fixing Hole Diameter 7.9 x 4.8mm
Weight 1.6kg
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
23 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 1,441.36
(exc. VAT)
THB 1,542.26
(inc. VAT)
Units
Per unit
1 - 9
THB1,441.36
10 - 24
THB1,333.27
25 - 49
THB1,293.32
50 - 99
THB1,276.52
100 +
THB1,274.62
