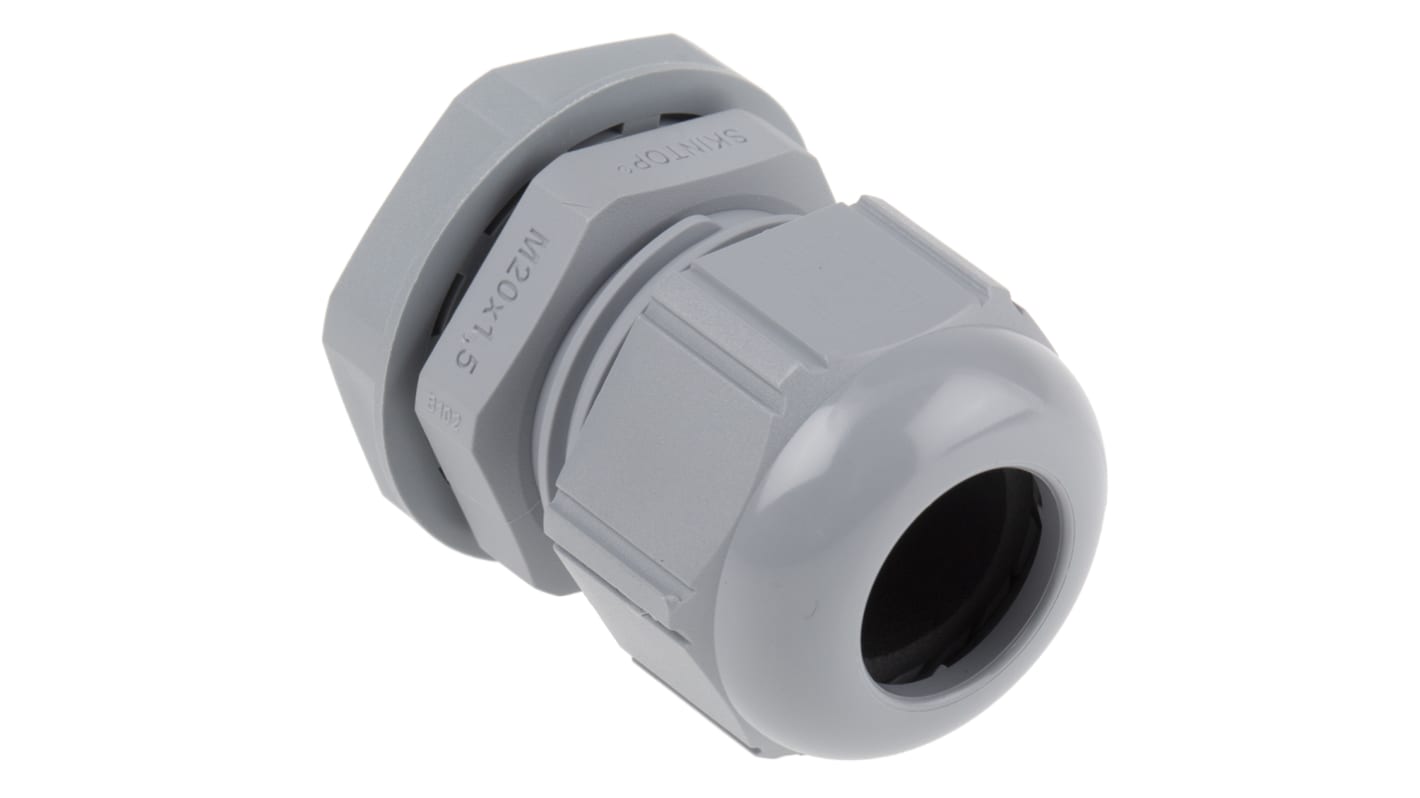

Lapp SKINTOP Series Grey Polyamide Cable Gland, M20 Thread, 6mm Min, 13mm Max, IP66, IP68, IP69
- RS Stock No.:
- 365-8438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 53111020+53119020
- ผู้ผลิต / Manufacturer:
- Lapp
55 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
1536 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Bag of 5
THB415.47
(exc. VAT)
THB444.55
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 - 4 | THB415.47 | THB83.094 |
| 5 - 24 | THB405.09 | THB81.018 |
| 25 + | THB394.96 | THB78.992 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 365-8438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 53111020+53119020
- ผู้ผลิต / Manufacturer:
- Lapp
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details
LAPP Polyamide Cable Gland With Locknut, M20, 13mm Maximum Cable Diameter - SKINTOP Series - 53111020+53119020
Prevent damage to electrical connections with this compact cable gland from LAPP. It ensures cables are attached firmly inside their enclosure so they won't fall out, even in vibrating systems. As it also offers them strain relief, cables can't twist or be bent at angles that could damage them. This prolongs the lifespan of your wiring and supports optimal performance. The unit comes with a locknut that provides a secure grip on the enclosure, making it useful for heavy industrial machinery.
Features & Benefits
• Polyamide body for durability and impact resistance
• Wide operating temperature range of -20°C to +100°C for use in harsh environments
• IP69 (ingress protection) rating to withstand dust and hot, high-pressure water jets
• Screw thread length of 9mm for a firm grip on the panel enclosure
• Wide operating temperature range of -20°C to +100°C for use in harsh environments
• IP69 (ingress protection) rating to withstand dust and hot, high-pressure water jets
• Screw thread length of 9mm for a firm grip on the panel enclosure
Applications
• Sewage and water treatment plants
• Photovoltaic devices
• Electrical control panels
• Photovoltaic devices
• Electrical control panels
What's the function of the CR seal on this cable gland?
The chloroprene rubber seal in this cable gland blocks air, moisture and dirt from getting into the connection. This enhances electrical safety.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Thread Size | M20 |
| Maximum Cable Diameter | 13mm |
| Minimum Cable Diameter | 6mm |
| Material | Polyamide |
| Colour | Grey |
| Series | SKINTOP |
| IP Rating | IP66, IP68, IP69 |
| Locknut Included | Yes |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +100°C |
| Number of Pieces | 100 |
| Standards Met | CE, cRUus Certified |
| Operating Temperature Range | -20 → +100 °C |
| Reference | SKINTOP |
