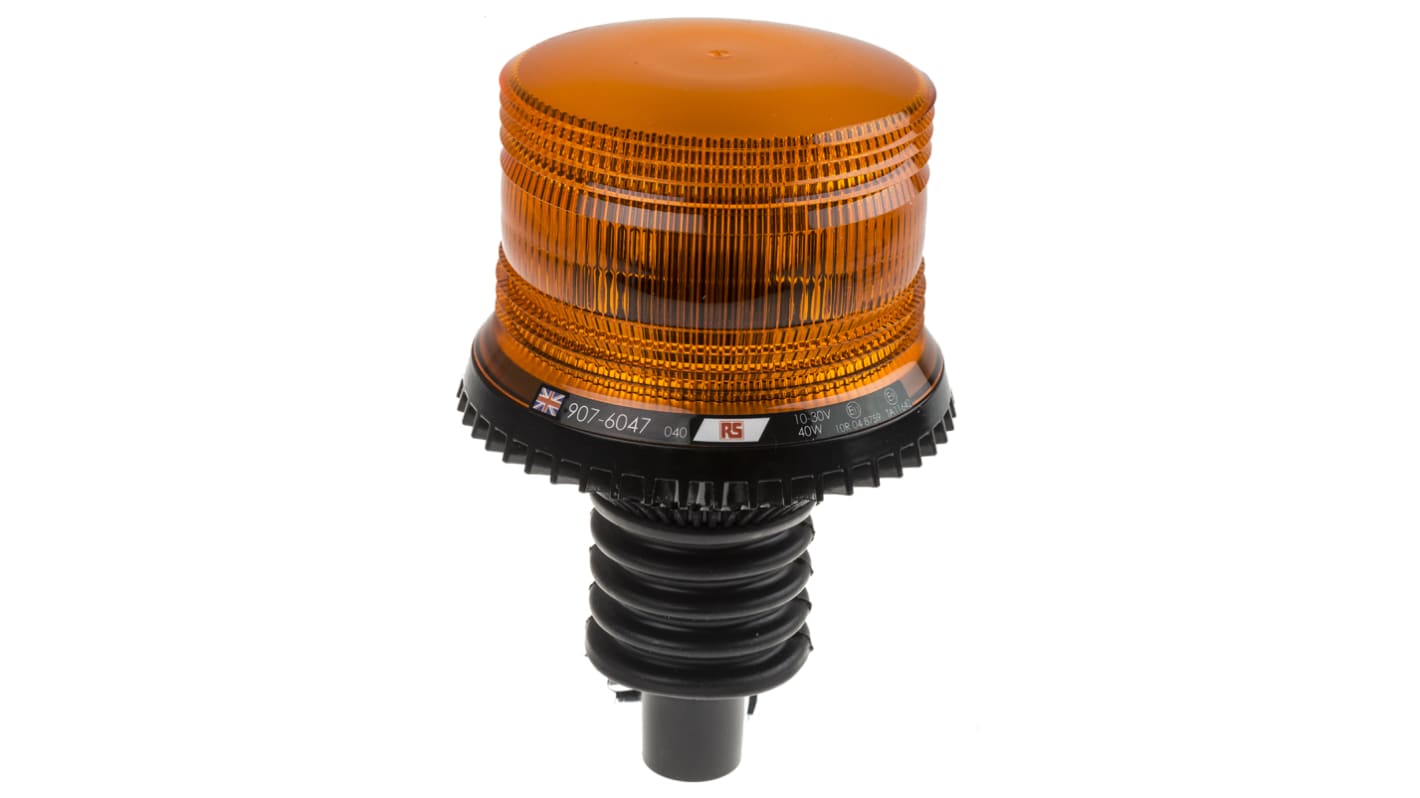

LED, Flashing Beacon LFB Series, Amber, Flexi DIN Rail, 10 → 30 V dc

  • RS Stock No. 907-6047
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

RS LED Beacons with Fresnel Lens

These LED beacons feature a robust polycarbonate fresnel lens and 12 x 3W high performance LEDs. The fresnel lens captures more oblique light from the LEDs thus allowing the light to be visible over greater distances.

EMC R10 approved
4 ECE R65 approved flash patterns (single, double, triple and quad) for stock no. 907-6047
Double flash only for stock no. 907-6056
120 Flashes per minute with memory function to remember last selected flash pattern
3-Point models can be linked for synchronised flash
Heavy duty heat sink and amber polycarbonate lens
Sealed for life against moisture and dust
Conformal coated PCB with reverse polarity protection

คุณสมบัติ / Specifications
คุณสมบัติ Value
Supply Voltage 10 → 30 V dc
Light Effect Flashing
Lens Colour Amber
Mounting Style Flexi DIN Mount
Bulb Type LED
Current Consumption 1.3 A, 2 A
Current Type DC
Base Diameter 137mm
Housing Colour Black
Lamp Included Yes
Series LFB
Multifunction Yes
Height 212mm
Standards Met EMC (ECE R10), RoHS Compliant
Minimum Temperature -30°C
IP Rating IP56
Maximum Temperature +50°C
Special Features EMC Approved, 3 Point and Single Point Models Can be Linked for Synchronised Flash
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 15/07/2020, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 3,256.77
(exc. VAT)
THB 3,484.74
(inc. VAT)
Units
Per unit
1 +
THB3,256.77
