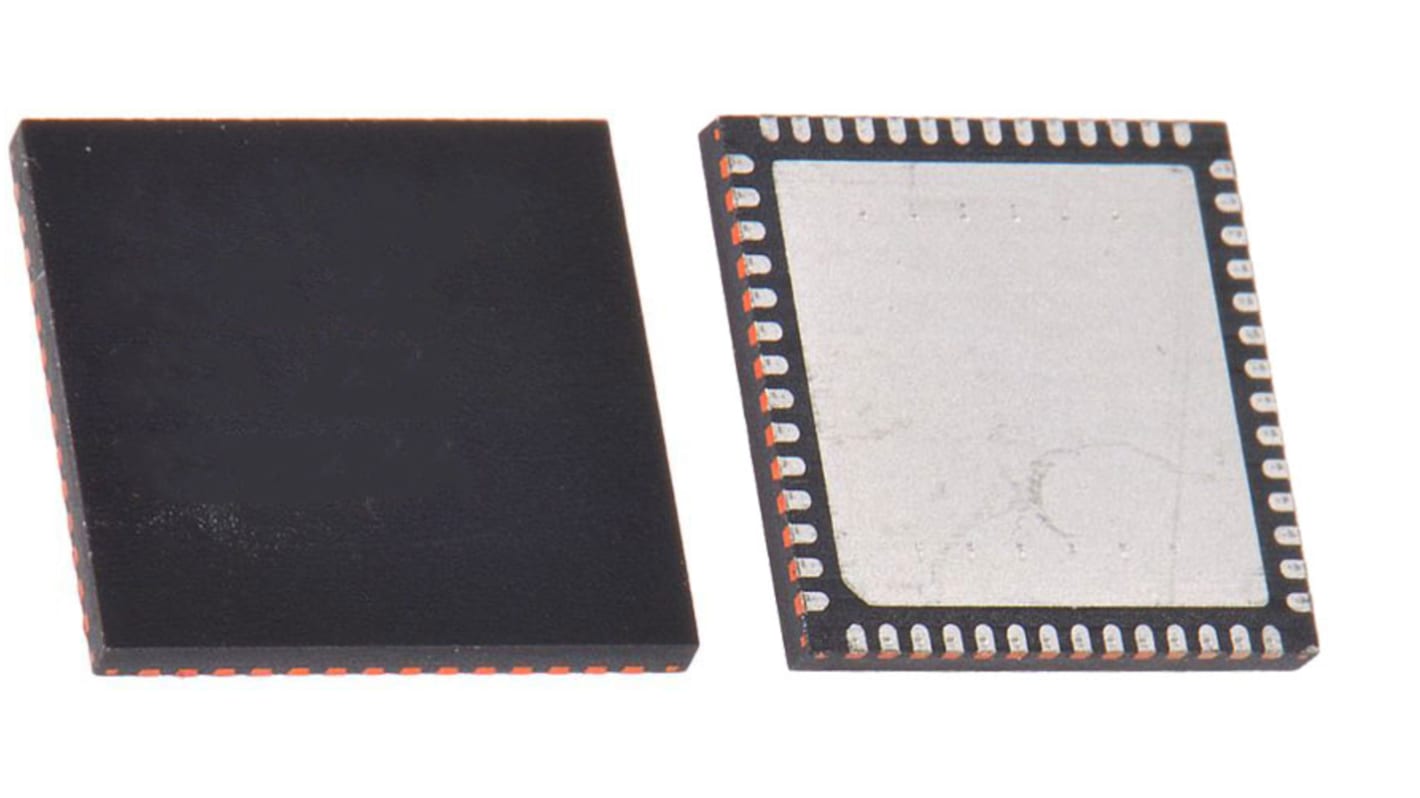

MAX98089ETN+T, Audio Codec IC, 2 (ADC), 2 (DAC)-Channel, 56-Pin TQFN
- RS Stock No.:
- 190-5212P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX98089ETN+T
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
สินค้าหมดและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
ขออภัย เราไม่มีสินค้าในสต็อกและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
เพิ่ม / Added
ราคา / Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
THB222.59
(exc. VAT)
THB238.17
(inc. VAT)
| Units | Per unit |
| 2 + | THB222.59 |
- RS Stock No.:
- 190-5212P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX98089ETN+T
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
5.6mW Power Comsumption (DAC to HP at 97dB DR)
101dB DR Stereo DAC (8kHz < fS < 96kHz)
93dB DR Stereo ADC (8kHz < fS < 96kHz)
Stereo, Low-EMI Class D Amplifiers
1.7W/Channel(8Ω, VSPK_VDD = 5.0V)
2.9W/Channel(4Ω, VSPK_VDD = 5.0V)
Efficient Class H Headphone Amplifier
Differential Receiver Amplifier/Stereo Line Outputs
2 Stereo, Single-Ended/Mono Differential Line Inputs
3 Differential Microphone Inputs
FlexSound Technology
5-Band Parametric EQ
Automatic Level Control (ALC)
Excursion Limiter
Speaker Power Limiter
Speaker Distortion Limiter
Microphone Automatic Gain Control and Noise Gate
Dual I²S/PCM/TDM Digital Audio Interfaces
Asynchronous Digital Mixing
Supports Master Clock Frequencies from 10MHz to 60MHz
RF Immune Analog Inputs and Outputs
Extensive Click-and-Pop Reduction Circuitry
Available in 63-Bump WLP Package (3.80mm x 3.30mm, 0.4mm Pitch) and 56-Pin TQFN Package (7mm x 7mm x 0.75mm)
Applications
Ideal for any product (e.g., tablets, netbooks, smartbooks) that uses a codec, but cannot afford to use higher cost HDI (high density) PCBs.
101dB DR Stereo DAC (8kHz < fS < 96kHz)
93dB DR Stereo ADC (8kHz < fS < 96kHz)
Stereo, Low-EMI Class D Amplifiers
1.7W/Channel(8Ω, VSPK_VDD = 5.0V)
2.9W/Channel(4Ω, VSPK_VDD = 5.0V)
Efficient Class H Headphone Amplifier
Differential Receiver Amplifier/Stereo Line Outputs
2 Stereo, Single-Ended/Mono Differential Line Inputs
3 Differential Microphone Inputs
FlexSound Technology
5-Band Parametric EQ
Automatic Level Control (ALC)
Excursion Limiter
Speaker Power Limiter
Speaker Distortion Limiter
Microphone Automatic Gain Control and Noise Gate
Dual I²S/PCM/TDM Digital Audio Interfaces
Asynchronous Digital Mixing
Supports Master Clock Frequencies from 10MHz to 60MHz
RF Immune Analog Inputs and Outputs
Extensive Click-and-Pop Reduction Circuitry
Available in 63-Bump WLP Package (3.80mm x 3.30mm, 0.4mm Pitch) and 56-Pin TQFN Package (7mm x 7mm x 0.75mm)
Applications
Ideal for any product (e.g., tablets, netbooks, smartbooks) that uses a codec, but cannot afford to use higher cost HDI (high density) PCBs.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| IC Type | Audio Codec IC |
| Number of Channels | 2 (ADC), 2 (DAC) |
| Power Supply Type | Single |
| Number of ADC Inputs | 3 |
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Pin Count | 56 |
| Number of DACs | 2 |
| Typical Operating Supply Voltage | 1.8 V |
| Dimensions | 7.1 x 7.1 x 0.75mm |
| Sampling Rate | 8 to 96kHz |
| ADC/DAC Resolution | 24bit |
| Number of ADCs | 2 |
| Codec Type | Stereo Audio |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
