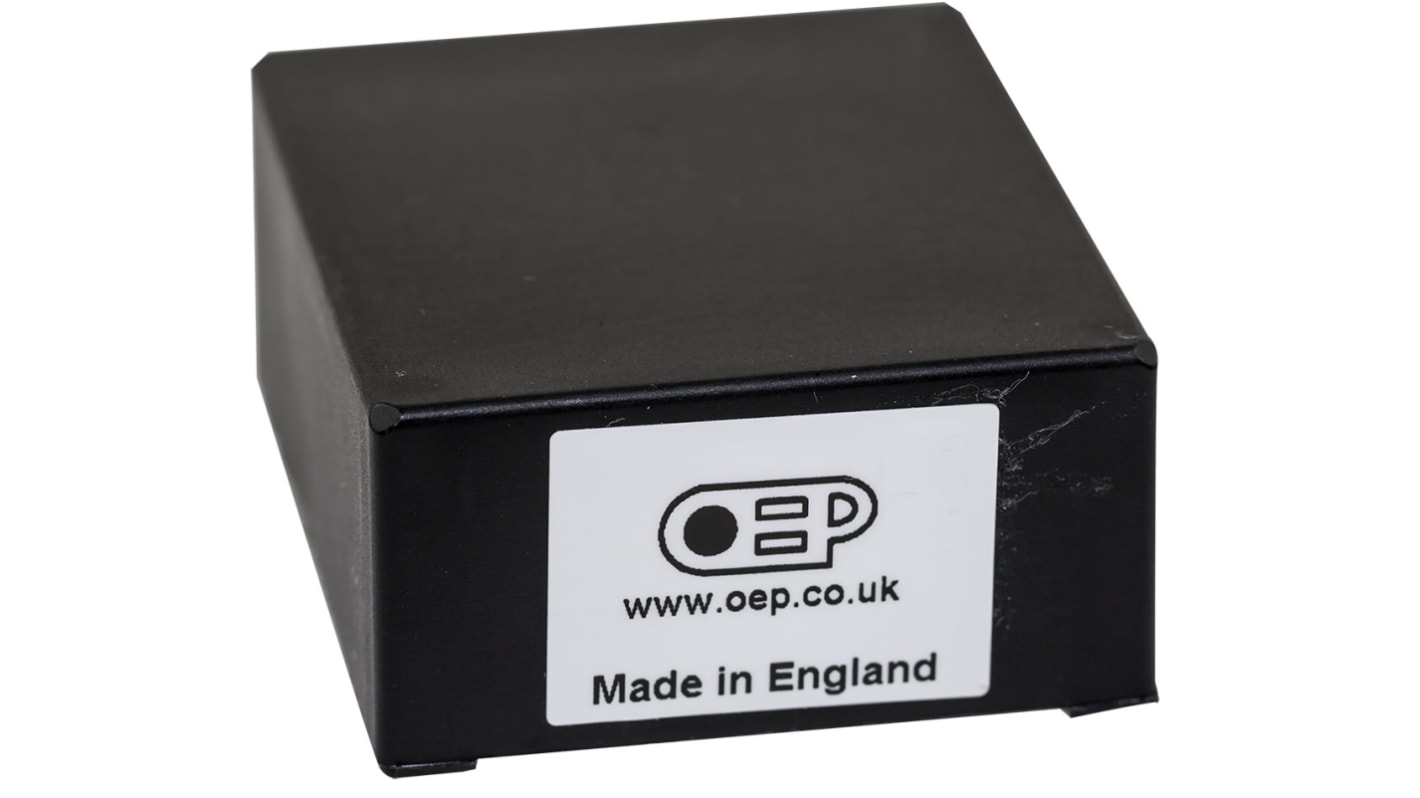

Line Input Transformer 1+1:1+1 for 150 Ω/600 Ω

  • RS Stock No. 123-7239
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CUI30A04E
  • ผู้ผลิต / Manufacturer OEP
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

OEP CUI30 Series Audio Output Transformers

CUI30 pro audio transformers from OEP feature a low profile, encapsulated construction. Suitable for PCB mounting, these transformers can be used as line output transformers or isolating transformers.

CUI30A02E (123-7238) has been designed for 70 Ω and 600 Ω applications and CUI30A04E (123-7239) is for use in 150 Ω and 600 Ω applications.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Primary Impedance 150 (Parallel) Ω, 600 (Series) Ω
Secondary Impedance 150 (Parallel) Ω, 600 (Series) Ω
Primary DC Resistance 9 + 9Ω
Power Rating 2W
Secondary DC Resistance 11.4 + 11.4Ω
Dimensions 53.4 x 44.4 x 22.5mm
Mounting Type Through Hole
Termination Type PC Pin
Weight 185g
Depth 22.5mm
Length 53.4mm
Width 44.4mm
Minimum Temperature -20°C
Minimum Operating Frequency 20Hz
Construction Encapsulated
Maximum Operating Frequency 20kHz
Maximum Temperature +70°C
Isolation Voltage 500V
Core Type Laminated
Turns Ratio 1+1:1+1
