Pro Audio 577Ω Mic. Splitting Transformer

  • RS Stock No. 123-7199
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. A187A11C
  • ผู้ผลิต / Manufacturer OEP
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

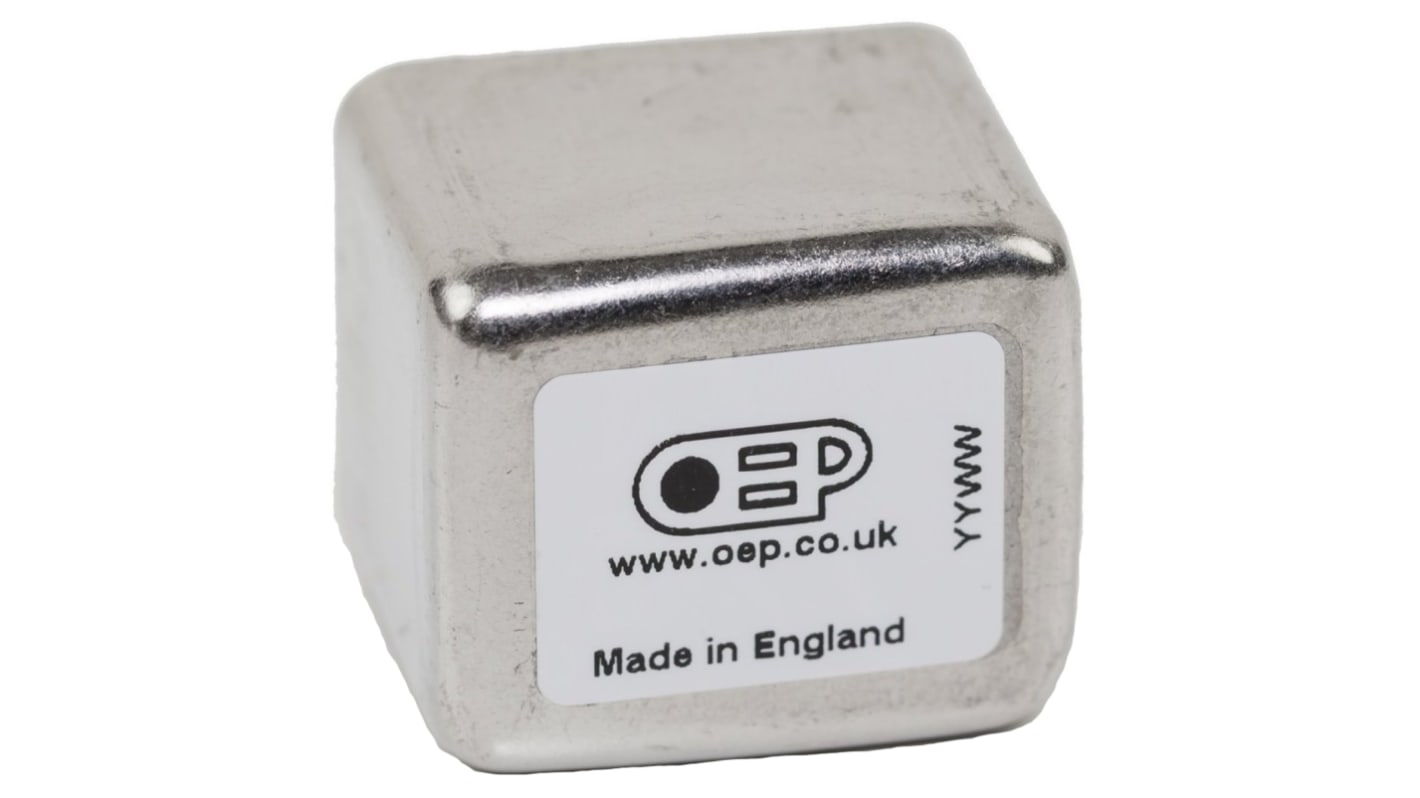

OEP A187A11C Microphone Transformers

A187A11C microphone transformers from OEP are ideal for signal splitting and impedance matching. These audio transformers provide two isolated balance outputs when loaded with 1 kΩ. Constructed with multiple electrostatic screens, these dual output microphone transformers have excellent common mode rejection. They are encapsulated in a mumetal screening can.

Proof voltage of 250 Vrms from windings to screen and from primary to secondaries
2.85 H nominal inductance at 1 kHz, 0.1 V
Interwinding capacitance of 180 pF at 1 kHz for primary to screens
Interwinding capacitance of 71 pF for secondary 1 to screens
Interwinding capacitance of 113 pF for secondary 2 to screens

Note

Do not pass DC through the windings

คุณสมบัติ / Specifications
คุณสมบัติ Value
Primary Impedance 577Ω
Secondary Impedance 1 + 1kΩ
Primary DC Resistance 49.8Ω
Secondary DC Resistance 48.5 (Secondary 1) Ω, 50 (Secondary 2) Ω
Dimensions 29.4 x 25 x 24.2mm
Mounting Type Through Hole
Termination Type PC Pin
Weight 56g
Depth 24.2mm
Length 29.4mm
Width 25mm
Maximum Temperature +70°C
Minimum Temperature 0°C
Minimum Operating Frequency 15Hz
Isolation Voltage 250V
Core Type Laminated
Construction Enclosed
Maximum Operating Frequency 50kHz
Turns Ratio 1:1:1
9 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 982.80
(exc. VAT)
THB 1,051.60
(inc. VAT)
Units
Per unit
1 - 9
THB982.80
10 +
THB933.75
