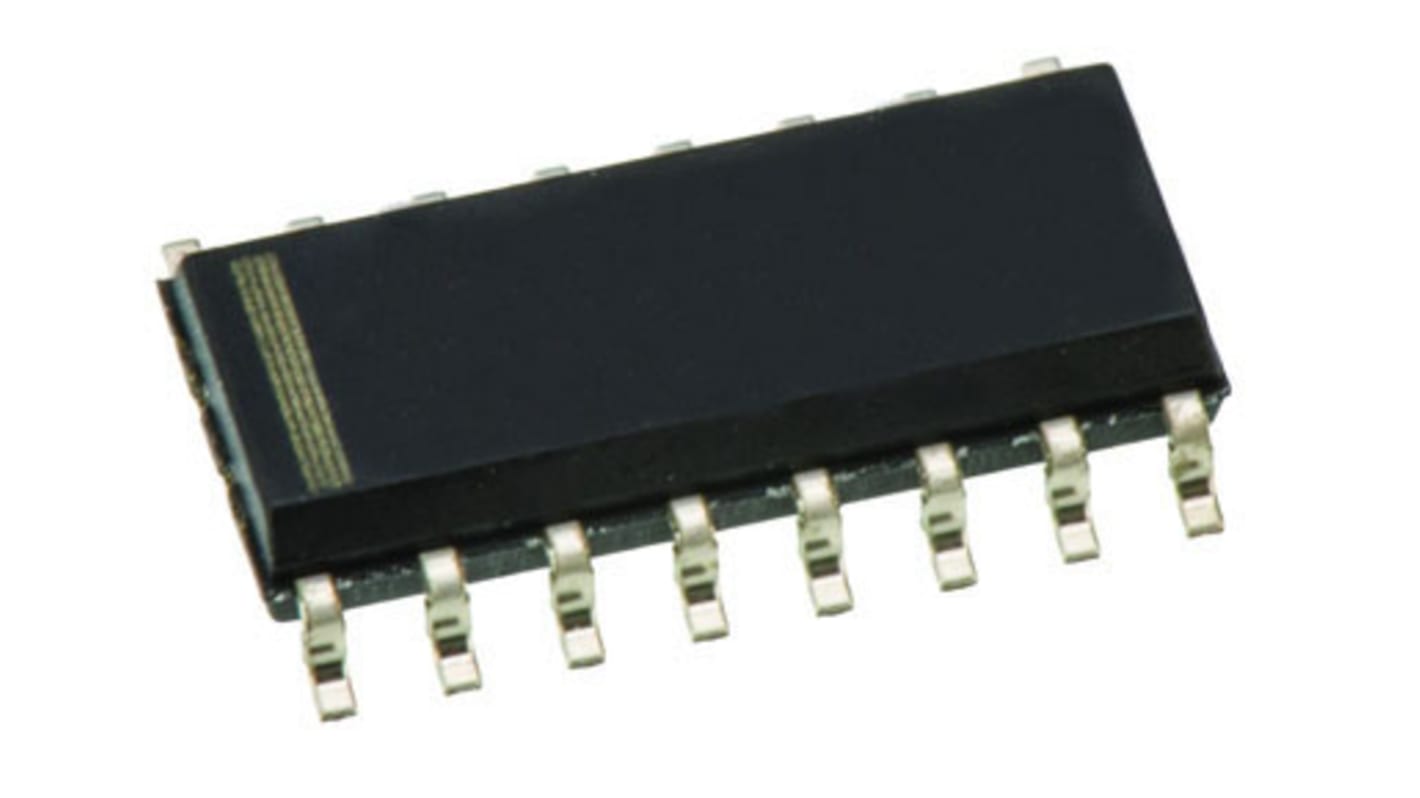

Texas Instruments Universal Filter Active Filter, 2nd Order
- RS Stock No.:
- 709-2166
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UAF42AU
- ผู้ผลิต / Manufacturer:
- Texas Instruments
56 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB707.08
(exc. VAT)
THB756.58
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB707.08 |
| 10 - 19 | THB689.41 |
| 20 + | THB678.79 |
- RS Stock No.:
- 709-2166
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UAF42AU
- ผู้ผลิต / Manufacturer:
- Texas Instruments
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Filter ICs, Texas Instruments
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Filter Type | Universal Filter |
| Maximum Order | 2nd |
| Architecture | Switched Capacitor |
| Cut-off Frequency | 100kHz |
| Power Supply Type | Dual |
| Typical Dual Supply Voltage | ±15V |
| Number of Circuits | 4 |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Dimensions | 10.28 x 7.52 x 2.35mm |
| Height | 2.35mm |
| Operating Temperature Range | -25 → +85 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 7.52mm |
| Length | 10.28mm |
| Minimum Operating Temperature | -25 °C |
